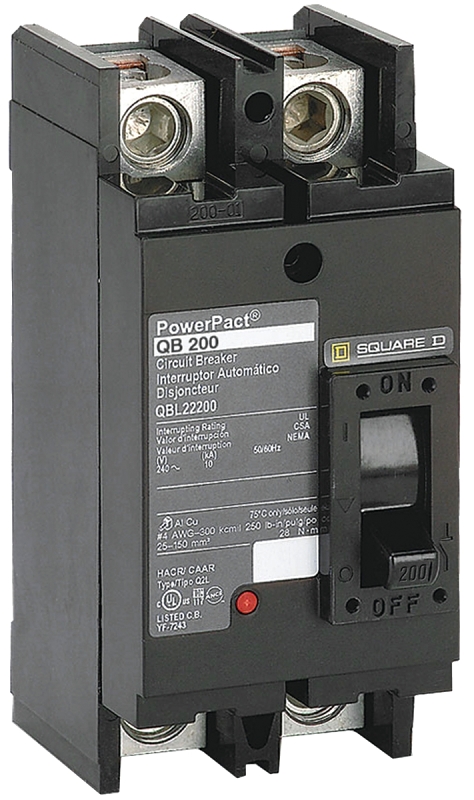

Square D QBL22200 Circuit Breaker, Type QBL, 200 A, 2 -Pole, 240 V, Plug Mounting, Black

Description

PRODUCT OVERVIEW
PowerPact® Q-frame circuit breakers are used for overcurrent protection and switching on ac systems. They are designed for 240 VAC applications.

Descripción español:
DISYUNTOR PRINCIPAL QO 2 POLOS 200 AMP

Product Details
Actuator Type:Magnetic Thermal
Color:Black
Current Rating:200 A
Dimensions:3.93 in W x 4.5 in D x 6.47 in H
Enclosure Type:Q-Frame
Interrupt Rating:10 kA
Mounting Type:Plug
Number of Phases:1
Number of Poles:2
Operating Frequency:50/60 Hz
Terminal Type:Lug
Type:Type QBL
Voltage Rating:240 V
Wire Size:4 AWG

Features
Shielded copper bus bar
Available in single and three phase
Ground bar is included with all main lugs load centers with three mounting locations
Convertible mains let you meet changing job-site requirements
Tangential main service knockouts
Enclosure rotates for top or bottom feed to reduce service cable waste
Qwik-Open circuit breaker protection
Exclusive Visi-Trip red indicator
Quick make – quick break mechanism
Plug-on design, easy to install
